Product Details:
|
Material: | Tungsten Carbide | Type: | CNMG Turning Inserts |
---|---|---|---|
ISO Grade: | P | Item: | DNMG150412-PMK |
ØI.C: | 12.7 | T: | 4.76 |
Ød: | 5.76 | Re: | 1.2 |
High Light: | OED Tungsten Carbide Tool Inserts,Tungsten Carbide Tool Inserts PVD Coated,Carbide Tool Inserts 4.76mm |

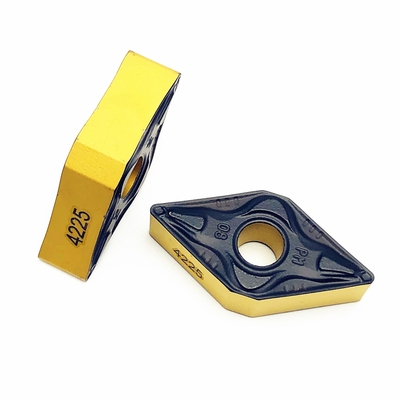

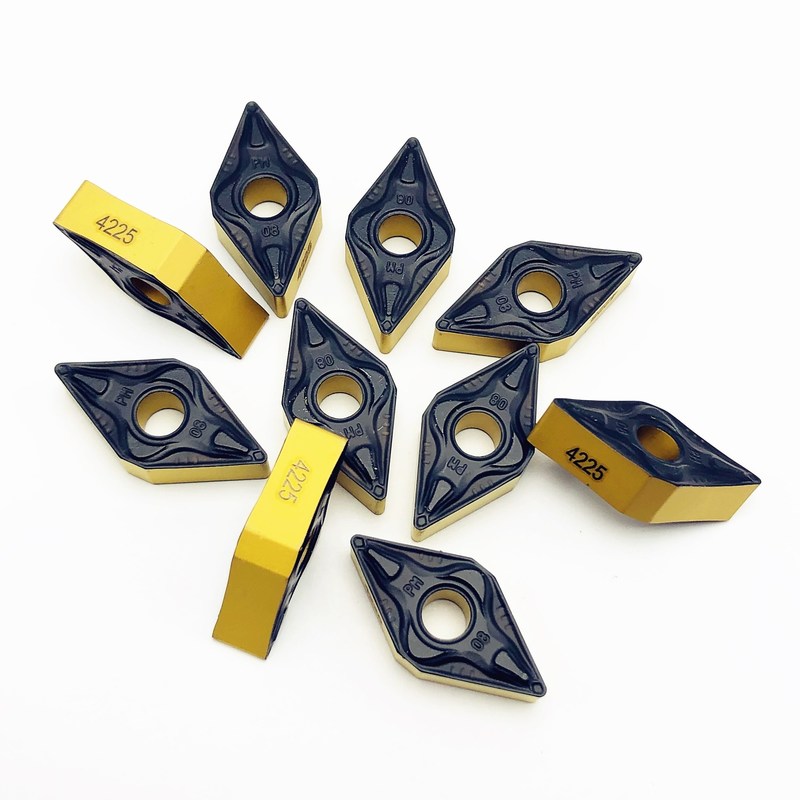

Turning Inserts DNMG150412-PMK Carbide Cutting Tools Steel Turning Inserts
Inserts Shape | Type | Dimensions(mm) | Grade for Choice | ||||||||
ØI.C | T | Φd | Re | T1100 | T1200 | T1300 | T1330 | C5280 | C5230 | ||
DNMG110404-PMK | 9.525 | 4.76 | 3.81 | 0.4 | ● | ▲ | ▲ | ● | ● | ● | |
DNMG110408-PMK | 9.525 | 4.76 | 3.81 | 0.8 | ● | ▲ | ▲ | ● | ● | ● | |
DNMG150404-PMK | 12.7 | 4.76 | 5.16 | 0.4 | ● | ▲ | ▲ | ● | ● | ● | |
DNMG150408-PMK | 12.7 | 4.76 | 5.16 | 0.8 | ● | ▲ | ▲ | ● | ● | ● | |
DNMG150412-PMK | 12.7 | 4.76 | 5.16 | 1.2 | ● | ▲ | ▲ | ● | ● | ● | |
DNMG150604-PMK | 12.7 | 6.35 | 5.16 | 0.4 | ● | ▲ | ▲ | ● | ● | ● | |
DNMG150608-PMK | 12.7 | 6.35 | 5.16 | 0.8 | ● | ▲ | ▲ | ● | ● | ● | |
DNMG150612-PMK | 12.7 | 6.35 | 5.16 | 1.2 | ● | ▲ | ▲ | ● | ● | ● |
For Cast Iron, Nonferrous, and General Purpose.
Recommended Grades:
Grade | ISO Application | Description |
T1100 | P10-P20 | The Special high-hardness substrate of gradient structure, combined with the thick TiCN and thick AL2O3 coating, greatly improves the wear resistance of the inserts. Applicable to steel finishing processing, stable working conditions, and the pursuit of high wear-resistant occasions. |
T1200 | P15-P30 | The substrate of good toughness and strength combined with the thick TiCN and thick AL2O3 coating, makes the coating greatly improved in wear-resistance and looks good in appearance. It is suitable for various processing of steel. |
T1300 | P15-P30 | The high-toughness substrate is matched with TiCN and thick AL2O3 coating of suitable thickness so that the material can still achieve both wear resistance and stability under strong impact conditions, which is suitable for rough processing of steel. |
T8100 | P10-P15 | Ultra-fine particle base substrate, high wear resistance, fine edge treatment, suitable for finishing processing and finishing boring of stainless steel. |
M10-M15 | ||
T8200 | K15-K25 | The high toughness substrate is matched with a suitable thickness of AlTiN coating to achieve both wear resistance and toughness. It's suitable for many fields from general machining of stainless steel turning ot milling. |
P15-P25 | ||
M15-M25 | ||
T8280 | P15-P30 | The preferred grade for stainless turning, for semi-finishing and roughing under continuous, interrupted cutting conditions. |
M15-M30 | ||
K15-K30 | ||
T8300 | M15-M30 | It's suitable for large depth of cut and large feed of turning of stainless steel under severe working conditions. |
T3150 | K15-K25 | Thick AL2O3 + thick TiCN coating combined with the hard substrate, with advanced coating technology to ensure smooth coating surface, low friction coefficient, suitable for cast iron finishing processing. |
T3260 | K15-K25 | TiN + medium thickness Al2O3 + thick TiCN coating combined with the hard substrate, good resistance to spalling, suitable for continuous and interrupted turning of cast iron with toughness requirements |
T2100 | K10-K20 | It's suitable for the finishing of aluminum alloy and cast iron. |
T2200 | K15-K25 | It's suitable for various processing of aluminum alloy turning to mill. |
P15-P25 | ||
M15-M25 | ||
T6250 | H10-H30 | PVD nano-coated ultra-fine grained carbide grade for turning hardened steel. |
T6200 | S15-S30 | The substrate with excellent deformation resistance plus nano-coating, suitable for semi-finishing of hard-to-machine materials such as high-temperature alloys. |
C5280 | P10-P25 | The grade for cermet turning, the combination of fine dispersed hard phase particles, binder phase strength theming, and annular phase structure control makes it get good toughness, excellent red hardness, and crater wear resistance and is suitable for the finishing and semi-finishing of steel, cast iron, etc. |
K10-K25 | ||
M10-M25 | ||
T1330 | P20-P40 | The special grade for deburr turning inserts |
T3220 | K20-K30 | A rough substrate with TiN + Al2O3 + TiCN coating for general processing of various materials. |
P10-P30 |
Our advantages:
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.
The internal stress can be removed through the cryogenic process to improve the microstructure.
The internal stress can be removed through the vibration process to improve the overall performance.
The service can be improved through the heat treatment process.
CIP forming.
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.
