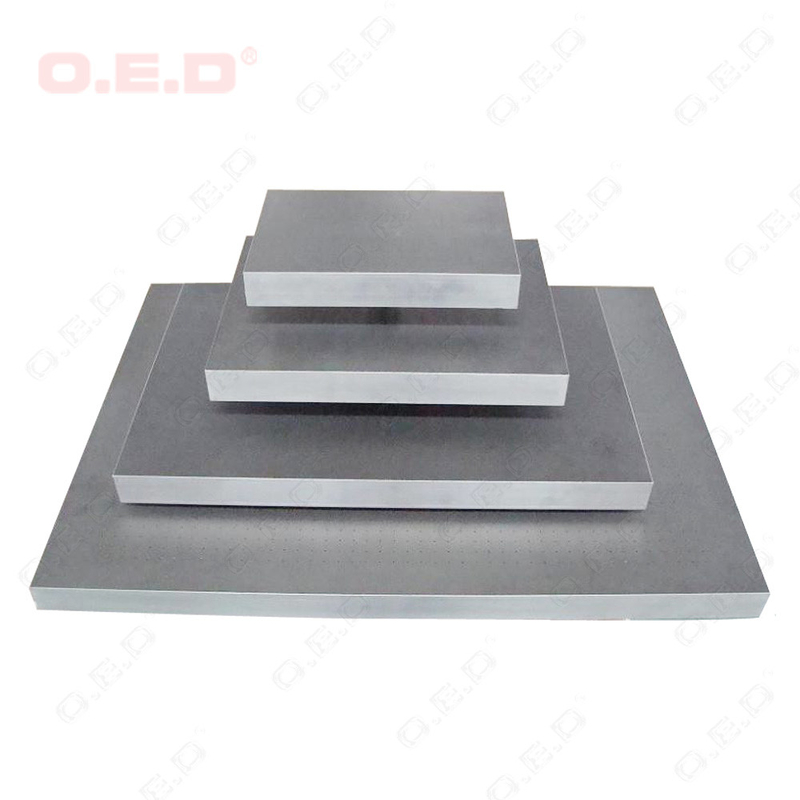

EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade

EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade
EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade

Large Image :  EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade

Product Details:
Place of Origin: China
Brand Name: OED or OEM
Certification: ISO 9001: 2008
Model Number: Carbide blocks
Payment & Shipping Terms:
Minimum Order Quantity: Small qty of amples are available.
Price: $7-$35
Packaging Details: plastic box/+ Cartons
Delivery Time: Standard products in one week, special tools in 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month

EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade

Description
Material: Tungsten Carbide Application: EDM Blocks
ISO Grade: Equal To WF30 Hardness: HRA 90
TRS: 3600 Density: 14
Tolerance: ISO 2768 M
High Light:

Stamping Die Tungsten Carbide Wear Plate

,

EDM Tungsten Carbide Wear Plate

,

Tungsten Carbide Wear Plate WF30

Stamping Die Carbide EDM Blocks High Anti Corrosion Carbide Plates



EDM20S carbide EDM Blocks, equal to WF30 grades

Cobalt: 13.5%

Density: 14

Hardness: 90 HRA

T.R.S. 3600

Grain size: Medium

Tolerance for length and width 0/+1.0

Thickness 0/+0.2

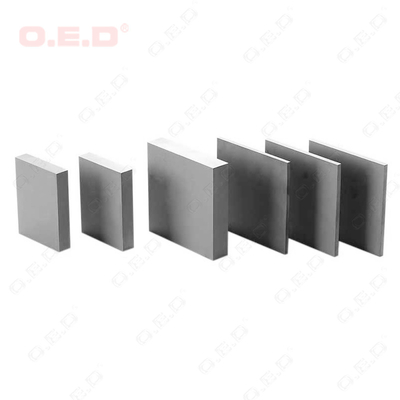

EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade 0


OED Carbide EDM Block:

Suitable for electronics, motor rotors, IC packages, lead frames, terminals, connectors, motor chip stamping, and other stamping fields.

  • Advanced formulation manufacturing process,
  • Wire cutting
  • Anti-corrosion properties of discharge processing
  • High-speed stamping resistance
  • High wear resistance



Recommended grades of carbide blocks:

Grade Binder (Co%) Density g/cm3 Hardness (HRA) T.R.S. Compress strength Grain Size
EDM10S 6 14.8 90.5 2900 5100 0.8-1.0
EDM15S 13 14.15 90 3000 5100 0.8- 1.5
EDM20S 13.5 14 90 3600 5200 0.8~1.5
EDM25S 13 14.15 89.5 3800 5000 1.0- 2.0
EDM30 12 14.25 90 3500 4900 0.8- 1.8
EDM40 12.5 14.1 89.5 3600 4600 1.0- 2.0
EDM50 14 14 88.5 3700 4500 1.5- 3.0
EDM60 15 13.9 87.5 3500 4200 2.0- 4.0



EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade 1



EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade 2

EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade 3
CIP forming.
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.


EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade 4


EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade 5




EDM Stamping Die Tungsten Carbide Wear Plate WF30 ISO Grade 6


Our advantages:

  • CIP forming.

CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.

  • Cryogenic process

The internal stress can be removed through the cryogenic process to improve the microstructure.

  • Vibration process

The internal stress can be removed through the vibration process to improve the overall performance.

  • Heat treatment

The service can be improved through the heat treatment process.




Why choose us for carbide wear parts:


  • Professional production equipment. From spray drying towers, extrusion molding, mold molding, injection molding, CIP, HIP sintering furnaces, flat grinders, heartless grinders, round grinders, EMD cutting, polishing machines, etc. OED can provide reliable quality assurance for your products.



  • The strict control of the production processing. From raw materials, sintering, processing, we will strictly test each process, non-conforming products will not enter the subsequent production.



  • Proficient technical team. Senior carbide raw materials engineers: To analyze whether the product meets your application requirements. Senior production managers: To study the most suitable for your product processing methods. Skilled technical inspectors: To test whether the finished product meets your drawing requirements.



  • Reliable service. Not only can we provide pre-sales technical services, but our engineers can also come up with product improvements to provide the most reasonable solution for your product.



  • Low-cost sample development. For trial orders, such as quantity below 10pcs, our engineer team can help customers to find the solution with mold fees. In this way, our customers can try the samples at a minimized cost.



  • Fast delivery. Standard products could be delivered in one week, and the special carbide tools could be finished in 25-45 days after confirming the drawings or 3D model.
