Product Details:
|
Material: | Tungsten Carbide | Application: | Waterjet Cutting |
---|---|---|---|
ISO Grade: | YL10.2 | Hardness: | HRA 91.9 |
TRS: | 3800 | Density: | 14.45 |
Tolerance: | ISO 2768 F | ||
High Light: | Tungsten Carbide Spray Nozzle,HRA 96 Carbide Spray Nozzle,Carbide waterjet cutting nozzle |

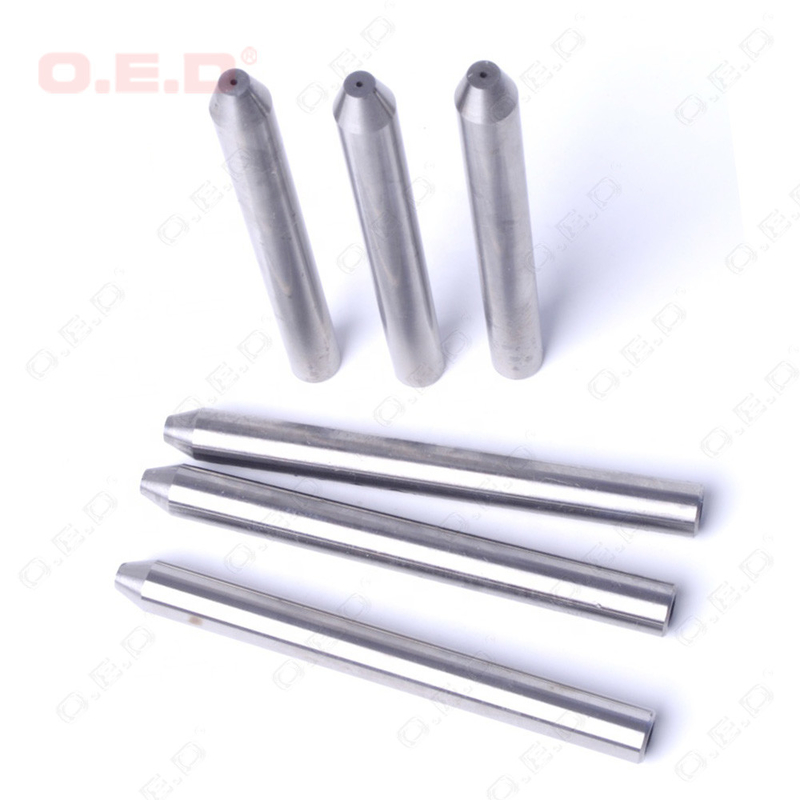

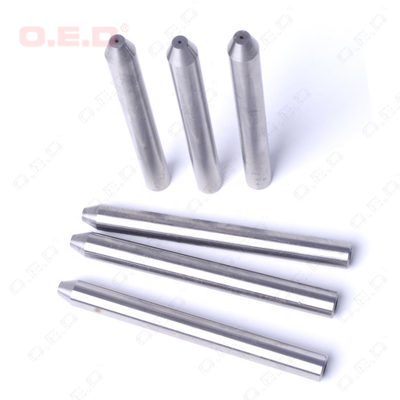

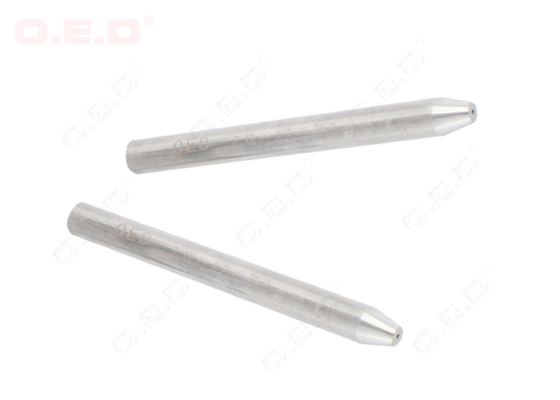

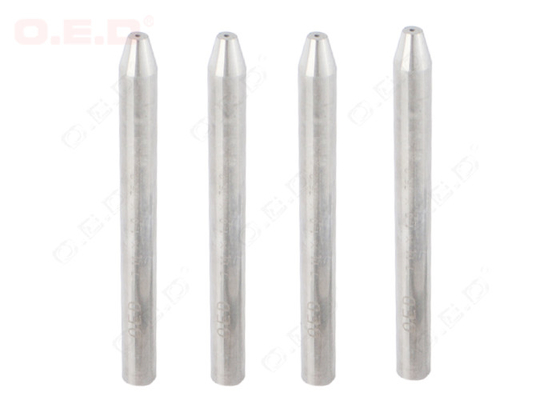

HRA 96 Tungsten Carbide Waterjet Cutting Nozzles Standard Wear Nozzles
The standard size of carbide waterjet cutting nozzles:
Type | Ф D | Ф d | d1 | d2 | α° | β° | L |
47467 | 6.00 | 0.76 | 3.5 | 3.8 | 30 | 28 | 76.2 |
45786 | 6.00 | 0.80 | 3.5 | 3.8 | 30 | 28 | 70 |
45486 | 6.00 | 1.02 | 3.5 | 3.8 | 30 | 28 | 70 |
47467 | 6.00 | 1.02 | 3.5 | 3.8 | 30 | 28 | 76.2 |
41141 | 6.35 | 0.50 | 3.5 | 3.8 | 30 | 28 | 76.2 |
41141 | 6.35 | 0.60 | 3.5 | 3.8 | 30 | 28 | 76.2 |
44588 | 6.35 | 0.76 | 3.5 | 3.8 | 30 | 28 | 50.8 |
41141 | 6.35 | 0.76 | 3.5 | 3.8 | 30 | 28 | 76.2 |
44588 | 6.35 | 1.02 | 3.5 | 3.8 | 30 | 28 | 50.8 |
41141 | 6.35 | 1.02 | 3.5 | 3.8 | 30 | 28 | 76.2 |
41141 | 6.35 | 1.14 | 3.5 | 3.8 | 30 | 28 | 76.2 |
41141 | 6.35 | 1.20 | 3.5 | 3.8 | 30 | 28 | 76.2 |
41141 | 6.35 | 1.27 | 3.5 | 3.8 | 30 | 28 | 76.2 |
48096 | 6.69 | 0.76 | 3.5 | 4 | 30 | 28 | 76.2 |
48096 | 6.69 | 1.02 | 3.5 | 4 | 30 | 28 | 76.2 |
48112 | 6.70 | 0.70 | 3.5 | 4 | 30 | 28 | 70 |
48543 | 6.70 | 1.00 | 3.5 | 4 | 30 | 28 | 70 |
43025 | 7.14 | 0.50 | 3.5 | 4.2 | 30 | 28 | 76.2 |
43025 | 7.14 | 0.76 | 3.5 | 4.2 | 30 | 28 | 76.2 |
48167 | 7.14 | 0.76 | 3.5 | 4.2 | 30 | 28 | 101.6 |
43025 | 7.14 | 1.02 | 3.5 | 4.2 | 30 | 28 | 76.2 |
48167 | 7.14 | 1.02 | 3.5 | 4.2 | 30 | 28 | 101.6 |
43025 | 7.14 | 1.27 | 3.5 | 4.2 | 30 | 28 | 76.2 |
45554 | 7.62 | 1.02 | 3.5 | 4.5 | 30 | 28 | 76.2 |
45554 | 7.62 | 1.27 | 3.5 | 4.5 | 30 | 28 | 76.2 |
45133 | 7.97 | 1.07 | 3.5 | 4.8 | 30 | 28 | 101.6 |
45133 | 7.97 | 0.50 | 3.5 | 4.8 | 30 | 28 | 101.6 |
45133 | 7.97 | 0.76 | 3.5 | 4.8 | 30 | 28 | 101.6 |
42014 | 9.43 | 0.50 | 3.5 | 5 | 30 | 28 | 76.2 |
42014 | 9.43 | 0.76 | 3.5 | 5 | 30 | 28 | 76.2 |
42014 | 9.43 | 1.02 | 3.5 | 5 | 30 | 28 | 76.2 |
OED Water jet cutting nozzles
Our abrasive water jet nozzles are widely used in various industries, such as automobiles, decoration, buildings, and stone.
OED TOP abrasive water jet nozzle is made from special materials, so it has greater performance than traditional tungsten carbide nozzles. Based on the newest technology, OED water jet nozzles can be more competitive than other nozzles.
OED nozzles as follows:
OED Tungsten carbide nozzles
Tungsten carbide nozzle is the most popular nozzle and is widely used in many industries.
OED TIC Nozzles
Without cobalt as a binder, the hardness and service life will be improved.
OED TOP nozzles
By mixing unique material, OED TOP nozzles can provide consistent, accurate cutting.
By using material without cobalt and maintaining extra-fine grain size, hardness can be up to HV10 3000 or even higher. As a result, the performance of nozzles will be improved remarkably.
Why OED abrasive water jet nozzles
As the figure above shows, the service life of OED TOP Nozzles is extended much longer than traditional nozzles.
Tungsten carbide wear-resistance nozzles.
Carbide is widely used in the production of various types of nozzles with high hardness and wear resistance. Standard carbide nozzles are as follows:
Solid Tungsten Oil Nozzle
Tungsten Carbide PDC Spray Nozzle
Tungsten carbide venturi nozzle
Sandblasting Nozzle
Slurry nozzles
Mud nozzles
Tungsten carbide screw thread nozzle
Water Spray Nozzle
Rotating Nozzle
Waterjet cutting nozzles
Special cutting nozzles
Wet blasting nozzle
Recommended carbide grades of carbide nozzles:
Grade | Co | Density | Hardness (HRA) | T.R.S. | |
Grain Size | (Wt %) | (g/cm3) | hv30 | (≥N/mm²) | |
YG11C | Coarse | 11 | 14.39 | >1170 | 2800 |
YG15C | Coarse | 15 | 14 | 1100 | 2800 |
YG15X | Fine | 15 | 14.2 | 1200 | 3000 |
YG20 | Medium | 20 | 13.5 | 900 | 2800 |
YG6X | Fine | 6 | 14.9 | 1600 | 2800 |
YG8 | Medium | 8 | 14.7 | 1500 | 2500 |
YG9 | Medium | 9 | 14.6 | 1300 | 2800 |
YG10X | Fine | 10 | 14.5 | 1200 | 3800 |
CIP forming.
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.
Our advantages:
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.
The internal stress can be removed through the cryogenic process to improve the microstructure.
The internal stress can be removed through the vibration process to improve the overall performance.
The service can be improved through the heat treatment process.
Why choose us for carbide wear parts:
