Product Details:
|
| Material: | Tungsten Carbide | Application: | Carbide Seal Ring |
|---|---|---|---|
| ISO Grade: | G20 | Hardness: | HV30 1500 |
| TRS: | 2800 | Density: | 14.8 |
| Tolerance: | ISO 2768 M | ||
| High Light: | G20 Tungsten Carbide Seal Rings,46mm Tungsten Carbide Seal Rings |
||

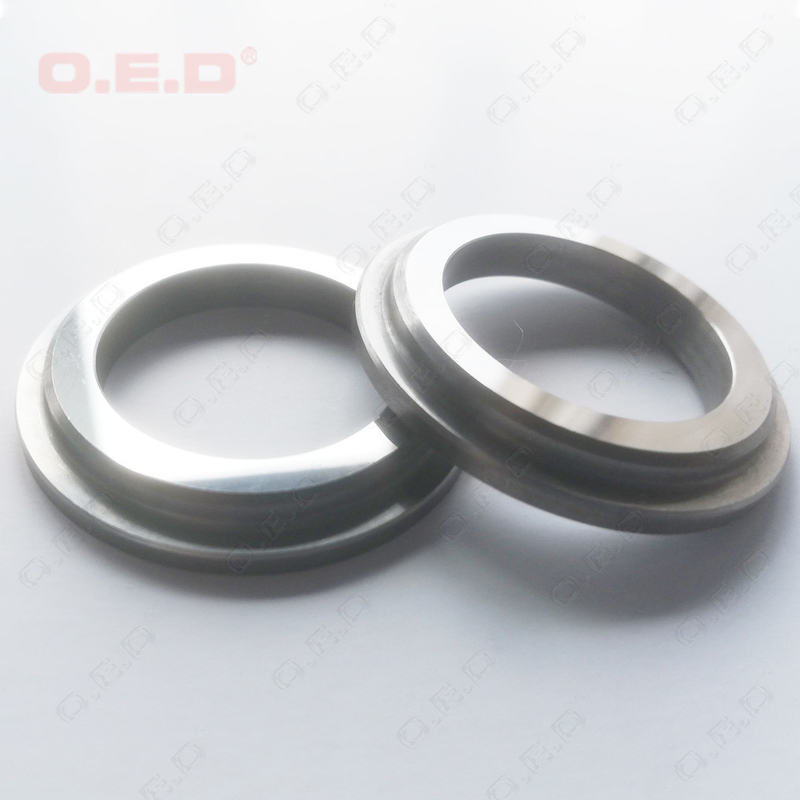

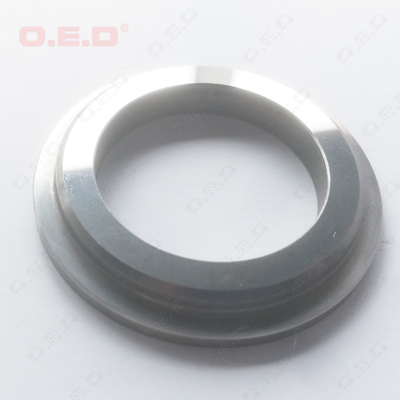

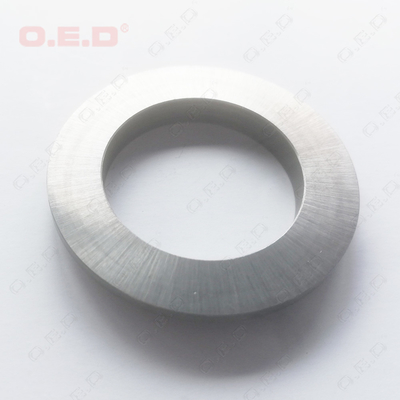

Tungsten Carbide Seal Rings Machanical Wear Parts Precision Polished Carbide Sealing
Grade G20
Outer Diameter 46mm
Inner Diameter 36mm
Thickness 5mm
Roughness Ra 0.4
Concentricity 0.02
We can offer different carbide grades according to various applications. Part of our carbide grades are as following:
Recommended carbide grades for wear parts:
| Application Code |
Grade | Chemical Composition | Physical and mechanical properties and mirco structure as stintered |
Application recommended | |||||||
| Co | Tic/ TacNbc |
WC | Density | Hardness | Hardness | TRS | Coercivity | Grain Size | |||
| g/cm3 | HV 30 | HRA | N/mm2 | KA/m | μm | ||||||
| G05 | OG6X | 6 | 94 | 14.85～15.05 | ≥1500 | ≥91.00 | ≥1700 | 19.2～25.7 | 0.8 | For drilling soft or medium hard rock formation with a single-zxis compression strength less than 60 Mpa | |
| G10 | OG6 | 6 | 94 | 14.85～15.05 | ≥1350 | ≥89.50 | ≥1800 | 12.0～15.9 | 1.6 | ||
| G15 | OG8C | 8 | 92 | 14.55～14.75 | ≥1150 | ≥87.50 | ≥2000 | 7.6～9.6 | 2.5 | For drilling soft or medium hard rock formation with a single-zxis compression strength of60-120 Mpa | |
| G20 | OG11C | 12 | 88 | 14.20～14.40 | ≥1050 | ≥86.50 | ≥2400 | 6.0～8.0 | 2.0 | ||
| G30 | OG15 | 15 | 85 | 13.95～14.15 | ≥1050 | ≥86.50 | ≥2220 | 8.0～10.8 | 1.6 | For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa | |
| G40 | OG20 | 20 | 80 | 13.45～13.65 | ≥750 | ≥83.50 | ≥2480 | 7.0～8.9 | 1.0 | ||
| G50 | OG25 | 25 | 75 | 13~13.15 | ≥650 | 82.5 | ≥3500 | 10~13 | 1.6 | For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa | |
Compared with traditional silicon carbide, carbide has more stable chemical properties, such as good wear resistance, high thermal conductivity, low coefficient of friction, small coefficient of expansion, acid resistance, alkali resistance, self-lubrication, corrosion resistance, high thermal conductivity and small expansion coefficient, making it an ideal material for mechanical wear-resistant parts.
Our products range of customized wear parts:
Why choose us for carbide wear parts:
