Product Details:
|
| Material: | Tungsten Carbide | Application: | Carbide Ring |
|---|---|---|---|
| ISO Grade: | G20/G30/G40 | Hardness: | HV30 1500 |
| TRS: | 3800 | Density: | 14.45 |
| Tolerance: | ISO 2768 F | ||
| High Light: | Corrosion Resistant Carbide Tungsten Ring,Carbide Tungsten Ring Non Magnetic |
||

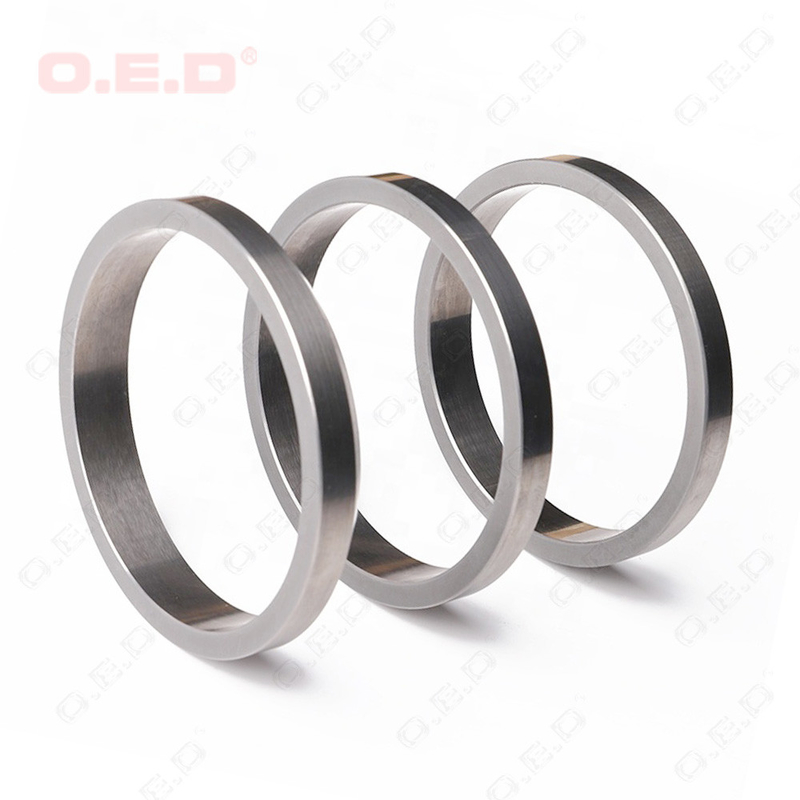

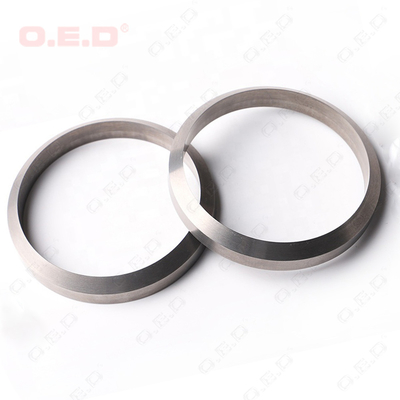

Non-Magnetic Corrossion Resistant Carbide Oil Rings As Wear Part For Drilling
In many machinery and food industries, the requirements for parts are relatively high. Some requirements must be wear-resistant parts that are not magnetic. Carbide produced from nickel as a binder has magnetically free, wear-resistant, corrosion-resistant properties.
Nickel grades for non-magnetic applications
| Grade | Chemical Composition | Physical and mechanical properties and mirco structure as stintered |
|||||||
| Ni | Cr | WC | Density | Hardness | Hardness | TRS | Coercivity | Grain Size | |
| g/cm3 | HV 30 | HRA | N/mm2 | KA/m | μm | ||||
| OGR25 | 6.2 | 0.52 | 93.28 | 14.10～14.30 | ≥84.5 | ≥2480 | 6.0～8.0 | 2.5 | |
| OGR30 | 6.64 | 0.62 | 92.74 | 13.93～14.13 | ≥83.5 | ≥2360 | 4.0～6.5 | 2.5 | |
| OGR40 | 8 | 0.87 | 91.13 | 13.60～13.80 | ≥82.5 | ≥2400 | 4.0～6.5 | 3.0 | |
| OGR45 | 9 | 0.87 | 90.13 | 13.45～13.65 | ≥81.0 | ≥2250 | 3.5～5.5 | 3.0 | |
| OGR55 | 12.67 | 0.87 | 86.46 | 12.90～13.10 | ≥79.5 | ≥2400 | 3.2～4.4 | 3.5 | |
| OGR60 | 13.2 | 0.87 | 85.93 | 12.58～12.78 | ≥79.0 | ≥2200 | 3.2～4.4 | 3.5 |
|
Our products range of customized wear parts:
Recommended carbide grades for wear parts:
| Application Code |
Grade | Chemical Composition | Physical and mechanical properties and mirco structure as stintered |
Application recommended | |||||||
| Co | Tic/ TacNbc |
WC | Density | Hardness | Hardness | TRS | Coercivity | Grain Size | |||
| g/cm3 | HV 30 | HRA | N/mm2 | KA/m | μm | ||||||
| G05 | OG6X | 6 | 94 | 14.85～15.05 | ≥1500 | ≥91.00 | ≥1700 | 19.2～25.7 | 0.8 | For drilling soft or medium hard rock formation with a single-zxis compression strength less than 60 Mpa | |
| G10 | OG6 | 6 | 94 | 14.85～15.05 | ≥1350 | ≥89.50 | ≥1800 | 12.0～15.9 | 1.6 | ||
| G15 | OG8C | 8 | 92 | 14.55～14.75 | ≥1150 | ≥87.50 | ≥2000 | 7.6～9.6 | 2.5 | For drilling soft or medium hard rock formation with a single-zxis compression strength of60-120 Mpa | |
| G20 | OG11C | 12 | 88 | 14.20～14.40 | ≥1050 | ≥86.50 | ≥2400 | 6.0～8.0 | 2.0 | ||
| G30 | OG15 | 15 | 85 | 13.95～14.15 | ≥1050 | ≥86.50 | ≥2220 | 8.0～10.8 | 1.6 | For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa | |
| G40 | OG20 | 20 | 80 | 13.45～13.65 | ≥750 | ≥83.50 | ≥2480 | 7.0～8.9 | 1.0 | ||
| G50 | OG25 | 25 | 75 | 13~13.15 | ≥650 | 82.5 | ≥3500 | 10~13 | 1.6 | For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa | |
Why choose us for carbide wear parts:
