Product Details:
|
| Material: | Tungsten Carbide | ISO Grade: | K20 |
|---|---|---|---|
| Application: | Flower-Type Knives | Hardness: | HRA 91 |
| TRS: | 2100 | Density: | 14.85 |
| Grain Size: | 0.6 | ||
| High Light: | Tungsten Carbide Wood Cutting Tools,Solid Carbide Wood Cutting Tools,Solid Carbide Wood Turning Tools |
||

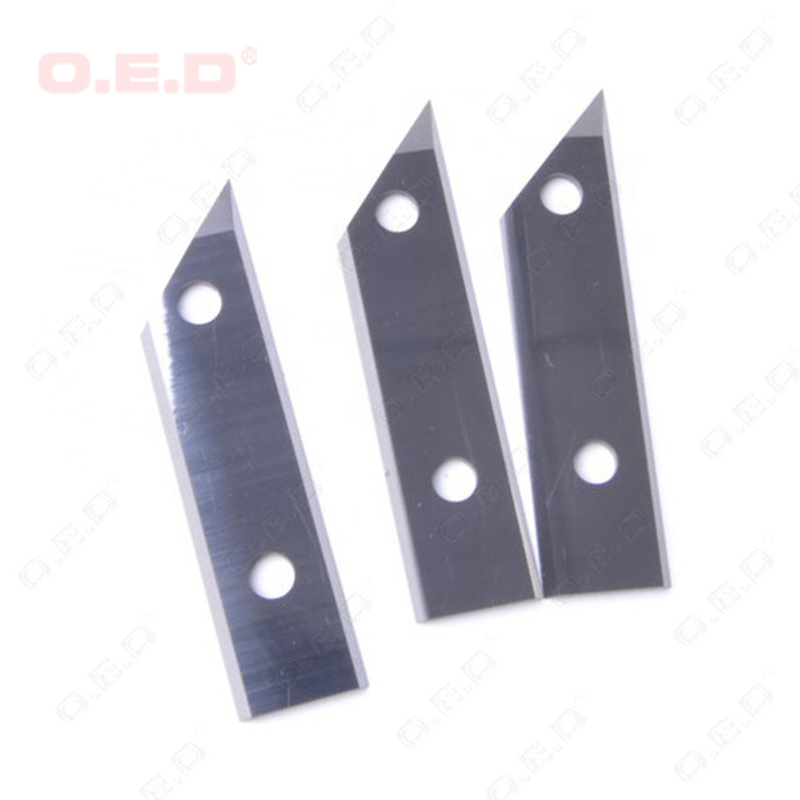

Solid Carbide Spindle Moulder Flower-Type Knives Woodworking Blades Indexable Wood Inserts

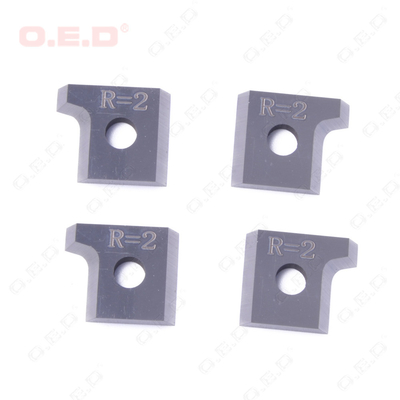

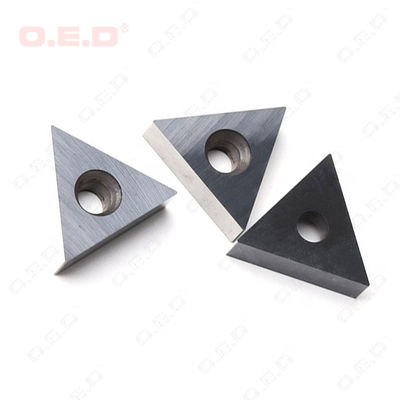

Wood Turning carbide indexable inserts Wood Turning Tools(Include Square, Square With Radius,Round Shape Cutters) Supplied with
Screw.
14 × 14 × 2-30 °,
30 × 12 × 1.5-30 °
some standard size and customized size available for carbide indexable inserts
Applicable equipment: woodworking double sides planer, four side planer, spindle moulder, profiling machine etc.
High wear resistance and high bending strength mirror polished
Applications are as follows:
Recommened Grades of carbide woodworking tools:
| ISO Code | Grade | Density g/cm3 |
Hardness HRA | TRS N/mm2 |
Grain size | Appplications | Proposal for welding |
| K01 | YG3X | 14.9-15.1 | 94.5 | 2000 | Ultra fine | For the cutting of the timber such as shaving board, laminated board, density board and compound material. | Recommend to use resistance welding .and the temperature should not be too high |
| K05 | YG6AX | 14.9-15.1 | 93.6 | 2600 | Ultra fine | ||
| K20 | YG6 | 14.85 -15.05 | 91 | 2100 | Midium | For The Cutting of Ordinary Wood | Recommend to use resistance welding .and the temperature should not be too high |
| K30 | YG8 | 14.60-14.85 | 90 | 2400 | Coarse | For the cutting of the ordinary wood,also for the aluminum | |
| K40 | YG8C | 14.5-14.8 | 88.5 | 2400 | Coarse | For the cutting of the recycling wood especially for some iron nails and stones in it | |
| K10 | YG6X | 14.75-14.95 | 92 .0 | 2000 | Fine | For the citing of the wood specially | Recommend to use the high frequeney welding |
| K10 | YG8X | 14.60 -14.85 | 91.5 | 2200 | Fine | For the citing of the wood and aluminum specially |
We are good at special tools according to customer's drawing. So don't hesitate to contact for any shapes of carbide tools.
Unground carbide flat bar blanks for Solid Carbide Strips and carbide blanks for other carbide tools like Saw tips for woodworking, Indexable knives, Blanks for profiling, and rods for woodturning tools are all available.
