Product Details:
|
| Material: | Tungsten Carbide | ISO Grade: | K20 |
|---|---|---|---|
| Application: | Recyling Wood | Length: | 110mm |
| Width: | 20mm | Thickness: | 3mm |
| Hardness: | HRA 91 | TRS: | 2200 |
| Density: | 15.1 | Grain Size: | Midium |
| High Light: | Wood Planer Blades 3mm,Tungsten Carbide Wood Planer Blades,Medium Grain Size wood planer knives |
||

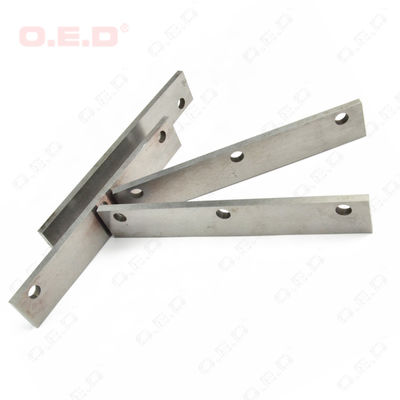

K20 Carbide Planer Blades For Woodworking HRA 91 For Cutting Hard Wood
Carbide planer baldes with holes
Hardness HRA 91
Length 110mm
Width 20mm
Thickness 3mm
Hole diameter Ø5.5
It's good for planer machine to machin hard wood.
We are good at special tools according to customer's drawing. So don't hesitate to contact for any shapes of carbide tools.
Unground carbide flat bar blanks for Solid Carbide Strips and carbide blanks for other carbide tools like Saw tips for woodworking, Indexable knives, Blanks for profiling, and rods for woodturning tools are all available.
Recommened Grades of carbide woodworking tools:
| ISO Code | Grade | Density g/cm3 |
Hardness HRA | TRS N/mm2 |
Grain size | Appplications | Proposal for welding |
| K01 | YG3X | 14.9-15.1 | 94.5 | 2000 | Ultra fine | For the cutting of the timber such as shaving board, laminated board, density board and compound material. | Recommend to use resistance welding .and the temperature should not be too high |
| K05 | YG6AX | 14.9-15.1 | 93.6 | 2600 | Ultra fine | ||
| K20 | YG6 | 14.85 -15.05 | 91 | 2100 | Midium | For The Cutting of Ordinary Wood | Recommend to use resistance welding .and the temperature should not be too high |
| K30 | YG8 | 14.60-14.85 | 90 | 2400 | Coarse | For the cutting of the ordinary wood,also for the aluminum | |
| K40 | YG8C | 14.5-14.8 | 88.5 | 2400 | Coarse | For the cutting of the recycling wood especially for some iron nails and stones in it | |
| K10 | YG6X | 14.75-14.95 | 92 .0 | 2000 | Fine | For the citing of the wood specially | Recommend to use the high frequeney welding |
| K10 | YG8X | 14.60 -14.85 | 91.5 | 2200 | Fine | For the citing of the wood and aluminum specially |
